Asrock
ASROCK H310CM-HDV/M.2 MOTHERBOARD
₹4,800₹7,62337% off
In stock
1
- SKU
- 9937998807355
- Category
- Motherboards
- Availability
- In stock
Specifications
| Feature | Details |
|---|---|
| Unique Features | ASRock Super Alloy, Sapphire Black PCB, High Density Glass Fabric PCB, Full Spike Protection for all USB, Audio, and LAN Ports, ASRock Live Update & APP Shop |
| CPU | Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151), Up to 95W, 4 Power Phase Design, Supports Intel Turbo Boost 2.0 Technology |
| Chipset | Intel H310 |
| Memory | Dual Channel DDR4, 2 x DDR4 DIMM Slots, Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Max. capacity: 32GB, Supports Intel XMP 2.0, 15μ Gold Contact in DIMM Slots |
| BIOS | 128Mb AMI UEFI Legal BIOS, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, Voltage Multi-adjustment for CPU, DRAM, PCH |
| Graphics | Intel UHD Graphics, DirectX 12, 3 Output options: D-Sub, DVI-D, HDMI, Supports 4K Ultra HD, HDCP 2.2, Supports up to 2 displays simultaneously |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec), Surge Protection, ELNA Audio Caps, Supports Multi-channel Audio |
| LAN | Gigabit LAN, Intel I219V PHY, Wake-On-LAN, Energy Efficient Ethernet 802.3az, PXE, Lightning/ESD Protection |
| Expansion Slots | 1 x PCIe 3.0 x16 Slot, 2 x PCIe 2.0 x1 Slots |
| Storage | 4 x SATA3 6.0 Gb/s, 1 x M.2 Socket supporting SATA3/PCIe up to Gen2 x4, Supports ASRock U.2 Kit |
| Connectors | Print Port Header, COM Port Header, TPM Header, Fan Connectors, USB Headers, 24 pin ATX Power, 8 pin 12V Power Connector |

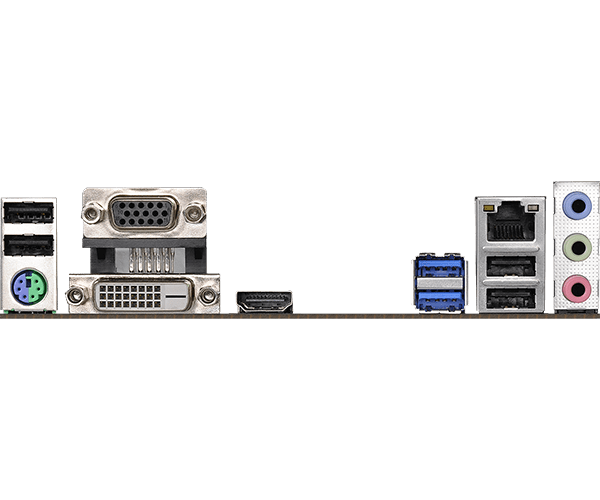

| Rear I/O Ports | PS/2 Mouse/Keyboard Port, D-Sub, DVI-D, HDMI, USB 2.0 (4 Ports), USB 3.1 Gen1 (2 Ports), RJ-45 LAN Port, HD Audio Jacks |
| Software and UEFI | ASRock A-Tuning, EZ Mode UEFI, Full HD UEFI, My Favorites in UEFI, Instant Flash, Internet Flash |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome |
| Accessories | Quick Installation Guide, I/O Shield, 2 x SATA Data Cables, 1 x M.2 Screw |
| Hardware Monitor | Temperature Sensing, Fan Tachometer, Quiet Fan (Auto adjust), Voltage Monitoring, CASE OPEN Detection |
| Form Factor | Micro ATX Form Factor: 8.9-in x 7.4-in |
| Operating System | Windows 10 / 11 64-bit |
| Certifications | FCC, CE, ErP/EuP ready |
