Asus

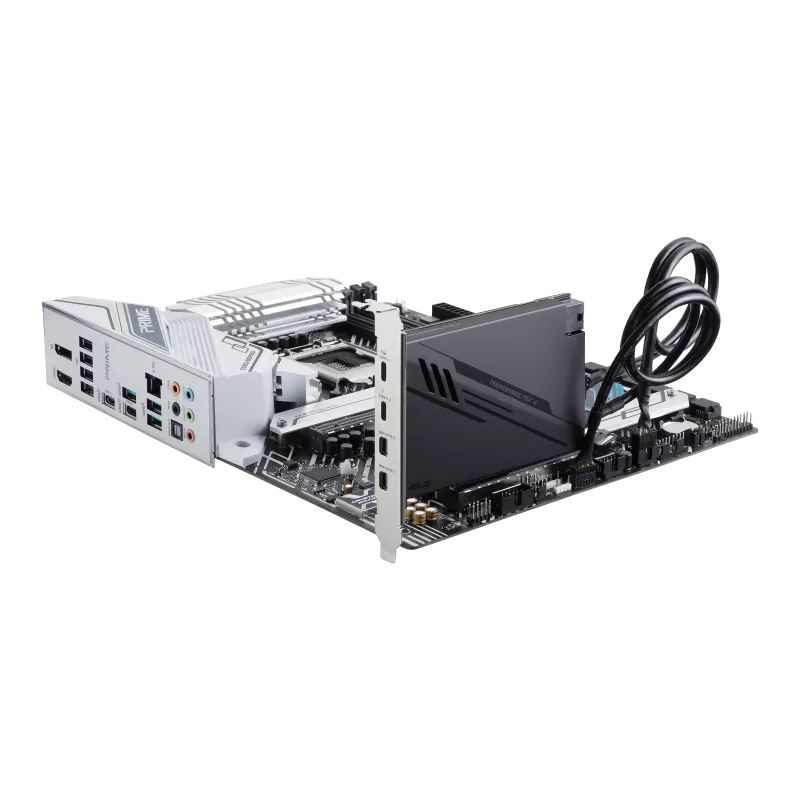

ASUS PRIME Z590-A INTEL LGA1200 MOTHERBOARD
₹22,350₹27,60019% off
In stock
1
- SKU
- 9345081704763
- Category
- Motherboards
- Availability
- In stock
Specifications
| CPU | Intel Socket LGA1200 for 11th Gen Intel Core™ processors & 10th Gen Intel Core™, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to ASUS website for CPU support list. ** Support depends on CPU type. |
|---|---|
| Chipset | Intel Z590 Chipset |
| Memory | 4 x DIMM, Max. 128GB DDR4 Supports DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Dual Channel Memory Architecture Supports Intel XMP, OptiMem II technology * Frequency support varies per CPU |
| Graphics | 1 x DisplayPort 1.4** 1 x HDMI™ 2.0*** ** DP 1.4 resolution depends on CPU *** HDMI features depend on CPU |
| Expansion Slots | Intel 11th & 10th Gen Processors - 3 x PCIe 4.0/3.0 x16 slots (CPU dependent) Intel Z590 Chipset - 1 x PCIe 3.0 x4 slot * Supports PCIe RAID on CPU |
| Storage | Total: 3 x M.2, 6 x SATA 6Gb/s 11th Gen CPU: - M.2_1 (PCIe 4.0 x4) Z590 Chipset: - M.2_2 (PCIe 3.0 x4 & SATA) *SATA6G_2 disabled in SATA mode - M.2_3 (PCIe 3.0 x4 & SATA) *SATA6G_6 disabled in SATA mode |
| Ethernet | Intel I225-V 2.5Gb Ethernet |
| USB | Rear (9 ports): - 1 x USB 3.2 Gen 2x2 Type-C - 4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C) - 4 x USB 2.0 Front (7 ports): - 1 x USB 3.2 Gen 1 Type-C - 2 x USB 3.2 Gen 1 ports - 4 x USB 2.0 ports |
| Audio | Realtek S1220A 7.1 HD Audio CODEC Optical S/PDIF out Premium audio components, shielding & amplification |
| Back Panel I/O | 1 x USB 3.2 Gen 2x2 Type-C 4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C) 4 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x 2.5Gb LAN 5 x Audio jacks 1 x Optical S/PDIF |
| Internal I/O | - 1 x 24-pin ATX - 1 x 8-pin +12V - 1 x 4-pin +12V - 3 x M.2 slots - 6 x SATA ports - 1 x USB 3.2 Gen 1 Type-C - 2 x USB 3.2 Gen 1 - 4 x USB 2.0 - Fan, RGB, AIO, Pump headers - Clear CMOS, COM, TPM, Thermal sensor - Thunderbolt header |
| Special Features | ASUS 5X Protection III ASUS Q-Design (Q-Slot, Q-LED, Q-Latch, etc.) Armoury Crate AI Suite 3, AI Overclocking, Fan Xpert 4 Aura Sync RGB EZ Flash 3 / CrashFree BIOS 3 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Accessories | 3 x SATA cables 2 x M.2 rubber packages 1 x Q-connector Support DVD User manual |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
