Gigabyte

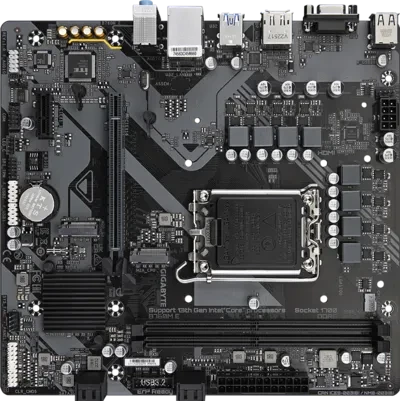

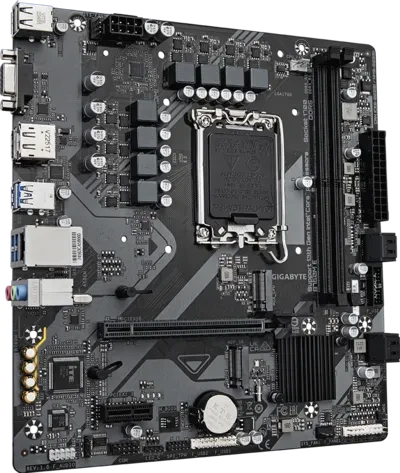

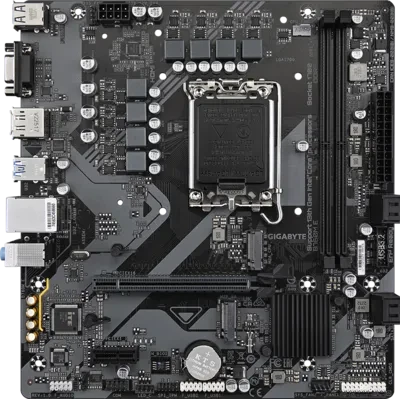

Gigabyte B760M E (Rev. 1.0) Intel B760 Express Chipset Micro ATX Motheboard
₹8,790₹13,09833% off
In stock
1
- SKU
- 10319941501243
- Category
- Motherboards
- Availability
- In stock
Specifications
| CPU Support | LGA1700 socket, Intel® Core™ 14th, 13th, 12th Gen, Pentium® Gold, Celeron®. L3 cache varies by CPU. Triple-display support. |
|---|---|
| Chipset | Intel® B760 Express |
| Memory | 2 x DDR5 DIMM slots, up to 128 GB, Dual Channel, Supports 4000–7200 MT/s (O.C.), ECC/Non-ECC, XMP support |
| Onboard Graphics | 1 x D-Sub (1920x1200@60Hz) 1 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3) 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3) |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 Chipset: 1 x PCIe 3.0 x1 |
| Storage | CPU: 1 x M.2 Socket 3 (PCIe 4.0 x4/x2, 2280) Chipset: 1 x M.2 Socket 3 (PCIe 4.0 x4/x2, 2280), 4 x SATA 6Gb/s RAID 0/1/5/10 support |
| USB | Rear: 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, D-Sub, DisplayPort, HDMI, RJ-45, 3 x Audio jacks Internal: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin 12V, CPU fan header, 2 x system fan headers, 1 x RGB header, 2 x M.2 connectors, 4 x SATA 6Gb/s, front panel header, front panel audio header, S/PDIF Out header, TPM header, serial port header, Clear CMOS jumper |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 128 Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | GIGABYTE Control Center (GCC), Q-Flash |
| Bundled Software | Norton Internet Security OEM, LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX; 23.0 cm x 21.5 cm |
