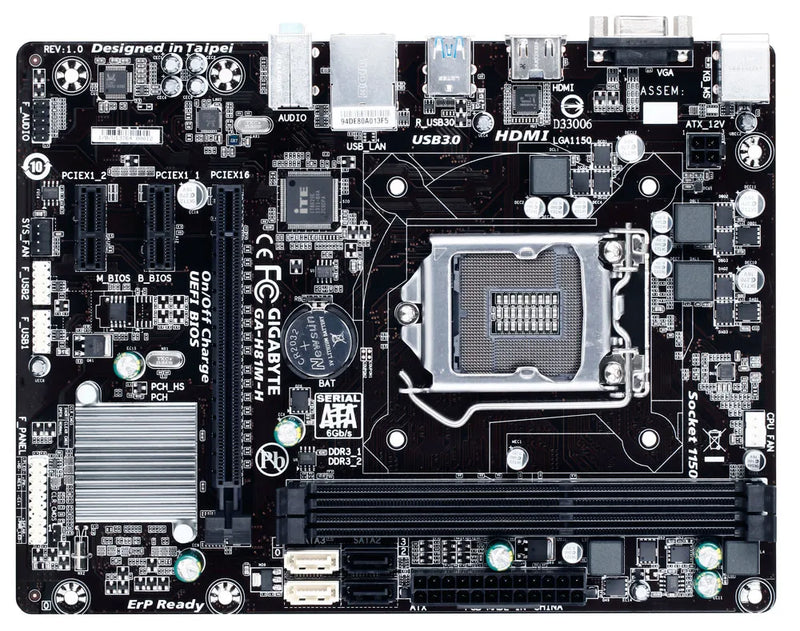

GIGABYTE GA-H81M-H INTEL LGA1150 MOTHERBOARD
₹6,000₹9,70038% off
In stock
1
- SKU
- 9345171226939
- Category
- Motherboards
- Availability
- In stock
Specifications
| CPU | 1. Support for Intel®Core™ i7 processors/Intel®Core™ i5 processors/Intel®Core™ i3 processors/Intel®Pentium®processors/Intel®Celeron®processors in the LGA1150 package |
|---|---|
| Chipset | 1. Intel®H81 Express Chipset |
| Memory | 1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory |
| Onboard Graphics | Integrated Graphics Processor - Intel®HD Graphics support: |
| Audio | 1. Realtek®ALC887 codec |
| LAN | 1. Realtek®GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| Storage Interface | Chipset: |
| USB | Chipset: |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| Back Panel Connectors | 1. 1 x PS/2 mouse port |
| I/O Controller | 1. iTE®I/O Controller Chip |
| H/W Monitoring | 1. System voltage detection |
| BIOS | 1. 1 x 32 Mbit flash |
| Unique Features | 1. Support for Q-Flash |
| Bundle Software | 1. Norton®Internet Security (OEM version) |
| Operating System | 1. Support for Windows 10/8.1/8/7 |
| Form Factor | 1. Micro ATX Form Factor; 22.6cm x 17cm |
