Gigabyte

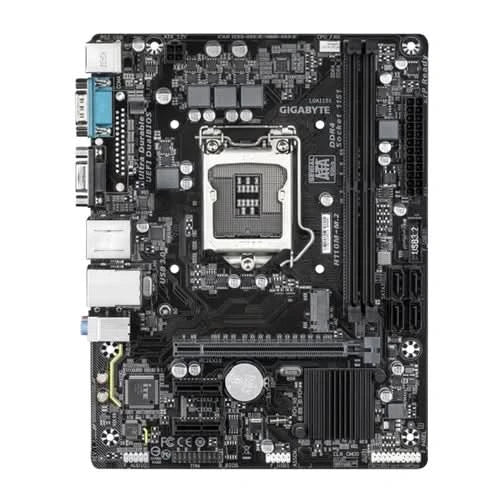

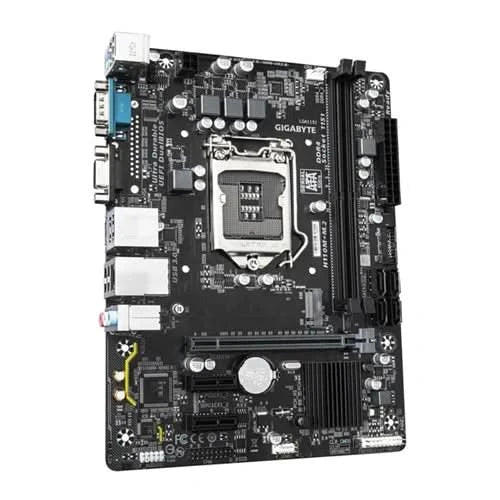

Gigabyte H110M-M.2 DDR4 M-ATX Motherboard
₹8,450₹11,10024% off
In stock
1
- SKU
- 10283966267707
- Category
- Motherboards
- Availability
- In stock
Specifications
| Platform | INTEL |
|---|---|
| Socket | LGA1151 |
| CPU Type | 7th Gen,6th Gen |
| Chipset | H110 |
| Memory Speed | up to 2400 |
| Max Memory Support | 32 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Expansion Slots | 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. 2 x PCI Express x1 slots, supporting PCIe 2.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x serial port 1 x D-Sub port (Note) 1 x HDMI port (Note) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
